Optimus Environmental and Noise at Work Meter with Octave Band Filters

Environmental Noise Meter
Environmental Noise Meter
Environmental Noise Meter Optimus Environmental Real-Time Octaves

Price List

CR171A
USD $4669.00
Class 1 Environmental Sound Level Meter with Octave Band Filters
In stock

CK171A
USD $5419.00
Noise Measurement Kit with Class 1 Environmental Octave Band Meter, Calibrator and Case
In stock
CR172A
USD $3763.00
Class 2 Environmental Sound Level Meter with Octave Band Filters
In stock

CK172A
USD $4334.00
Noise Measurement Kit with Class 2 Environmental Octave Band Meter, Calibrator and Case
In stock
CR514
USD $467.00
Class 2 Sound Level Calibrator
In stock

CR515
USD $656.00
Class 1 Sound Level Calibrator
In stock
ZL174
USD $81.00
DC Output Cable - 18 pin to phono, 1 m
Lead time 1 week

ZL175
USD $169.00
RS232 Cable - 18 pin to 9 pin D female
Lead time 1 week

ZL202
USD $138.00
Microphone extension cable 2 m
Lead time 1 week

ZL205
USD $162.00
Microphone extension cable 5 m
Lead time 1 week

ZL210
USD $202.00
Microphone extension cable 10 m
Lead time 1 week

ZL220
USD $250.00
Microphone extension cable 20 m
Lead time 1 week

The delivery price is calculated during checkout based on your location and the goods ordered. Our basic delivery prices are:

Delivery within India: $82.00

Delivery Service: Five working days*

* For products that are in stock and the order received by midday.

Some products go through a final configuration and calibration before being shipped. If the calibration labs are busy this can add up to two days on to the delivery schedule but guarantees a fresh calibration.

CR171A
USD $4669.00
Class 1 Environmental Sound Level Meter with Octave Band Filters
In stock

CK171A
USD $5419.00
Noise Measurement Kit with Class 1 Environmental Octave Band Meter, Calibrator and Case
In stock

Features

  • Audio recording
  • VoiceTag notes
  • Single measurement range 20 to 140 dB
  • Real-time Octave Band Filters
  • Weatherproof Outdoor Kit available
  • 15 Year Warranty

Applications

  • Environmental soise surveys
  • Noise at work surveys
  • Hearing protector assessments
  • Mixed industrial and residential areas

Measure All, Miss Nothing

The Optimus range of meters measure all parameters at the same time, so there is no need to spend time figuring out if you have the meter set up correctly before starting a measurement.

The Optimus Environmental sound level meter is available as either Class 1 or Class 2 - the most common for environmental noise measurement and more accurate being Class 1. This meter has everything needed for a noise at work assessment too, including octave band filters for detailed analysis and hearing protector selection. For noise at work Class 2 is adequate.

Outdoor Kit Option

If the meter is to be left unattended in poor weather conditions then the optional Outdoor Kit should be used to offer protection against the elements.

The Outdoor Kit also includes a large rechargeable battery pack for at least seven days of monitoring.

Our Recommendation: CK171A Noise Measurement Kit

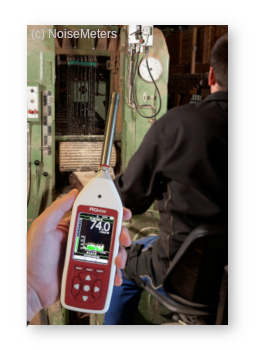

noise at work
Noise at Work

Most environmental noise surveys demand the use of a Class 1 Sound Level Meter that can make repeating measurements, such as the 5 minute LAeq and L90 (background noise).

For occupational and factory noise assessments, most regulations state that the lower cost Class 2 meter is adequate.

For measurement of both environmental and occupational noise we recommend the Class 1 option, as it is more than adequate for noise at work but also meets the higher demands of environmental use. The Class 1 microphone also has a lower noise floor, making it more suitable for measuring the typlically lower sound levels associated with outdoor measurements.

For these reasons we recommend the CK171A Noise Measurement Kit, which includes a Calibrator as required by most regulations.

Environmental Noise Measurements

The Optimus Environmental sound level meter is capable of measuring the noise parameters required for most environmental noise surveys. It is ideal for both short term and longer term measurement when installed in a weatherproof outdoor kit.

The main noise measurement parameters are:

  • Periodic LAeq and Ln (e.g. L10, L90, etc.)
  • Maximum and minimum sound levels
  • Time history
  • Dates and times
  • Voice tag recording of notes
  • Audio recording

Noise at Work and Indoor Noise Measurements

The Optimus Sound Level Meter measures all the parameters that are needed for an occupational noise survey. What's more, it measures them all at the same time, so there is no need to work out which measurements you need before starting.

Noise Measurements Stored

The acoustic parameters stored can be logically separated into two groups:

1. Periodic Summary

Whenever you press Start and then Stop, you get a summary of the noise. For environmental surveys, the Start/Stop process is usually run automatically, repeating every 15 minutes for example. The summary typically consists of the following parameters describing the noise in detail:

  • LAeq (average sound level)
  • Ln values, including the all important L90 (background noise)
  • Lmin and Lmax (minimum and maximum sound levels)
  • Date, time and running time

2. Time History

On top of the summary data above, the meter continually stores a number of parameters, typically every second, but the rate can be between 10ms and 2 seconds. When downloaded to a computer, this gives a detailed and very useful graph of the noise levels over time.

Although the Time History is not usually a requirement of the regulations, it is extremely useful when presenting a picture of the noise. It also offers the ability to zoom in on different times of day and recalculating the Leq for other time periods.

Audio Recording

The audio recording feature is included with the Optimus Environmental sound level meter. If you choose to enable it the meter make a recording of the audio during the measurement. It's uses are:

  • Play back on the computer so you can identify the noise source
  • Further analysis of the noise using the Noise Tools software

The audio is stored along with the measurement, making playback and analysis more convenient. Depending upon the way you want to use the recording there are three levels of recording quality:

  • Standard Quality - acceptable quality for listening to
  • High Quality - for listening and post processing
  • Studio Quality - for high accuracy analysis

Audio recording can be started manually by pressing a key or it can be triggered automatically based on the level and duration of noise events.

VoiceTag™ - Audio Notes

The quickest way is to take notes about a measurement is to make a brief recording just before making a measurement. The VoiceTag stays with the measurement when it is transferred to the computer. The VoiceTag feature is included with all versions of the Optimus Environmental sound level meter.

Before starting a measurement, the meter will ask if you want to record a "VoiceTag". The meter will record any speech or the noise in question (to help you identify it later) for up to 30 seconds. This audio is transferred to the software automatically along with the measurement.

You can skip this stage if you don't need a voice tag, or the option can be disabled altogether.

When viewing the measurement on a computer the Play Voice Tag button lets you listen to the recording on the computer's speakers.

Environmental Noise Measurement

The Environmental version of the Optimus Sound Level Meter is ideal for almost any type of noise measurement, but it has been optimised for Environmental Noise Surveys. It provides all the parameters and features that are usually needed, and of course it meets the very demanding acoustic standard IEC 61672 to Class 1.

  • For environmental and community noise assessments
  • Ideal for BS4142, PPG24 and related regulations
  • Noise in mixed industrial and residential areas
  • Environmental noise surveys around factories

The following features are available with this meter, all designed to make the acoustic measurement process quicker, easier and more accurate:

  • Class 1 to IEC 61672, Type 1 to IEC 60651 and IEC 60804
  • Measurement of Leq, Ln (L90, etc) and many other parameters
  • Automatic, repeating measurements for longer term assessments

Calibration Check

calibration check
Calibration Check

Most regulations and measurement standards state that the meter's calibration should be checked before making measurements.

Fit the Calibrator over the microphone as shown on the right, switch it on and press the Calibrate button. The meter will automatically make any adjustments.

Calibration details are stored in the meter so that you can either make note or download them to a computer if you have the data logging option.

Manual Measurements

Press the Start key, shown on the right to begin the measurement process. If you have the data logging option fitted then the meter will ask if you want to make a Voice Tag recording.

The meter will start measuring the LAeq and other parameters that are needed for environmental noise surveys.

When you are happy that you have measured for long enough simply press the Stop key.

Recording Audio

The meter can record the audio - so you can listen to the actual sound later. Audio recordings can be started manually or when a trigger level is exceeded.

To start a recording manually press the Audio button during a measurement.

The Audio Recording can be set to start automatically when a certain level is exceeded. For example, you can set it to make a recording when the level exceeds 65dB(A). You can even set it to trigger when the trigger level is exceeded in just one band to detect tonal noise. Adjustable smoothing factors are available to avoid triggering on very short term noise.

Automatic, Repeating Measurements

For many environmental noise surveys, you need periodic (usually 5 minute, 15 minute or 1 hour) measurements showing values such as the Leq and the L90.

To make this type of measurement, use the Menu key to set the meter to make repeating measurements of the required duration. The meter will now run for the specified period. It will then stop, store the results and start again automatically.

It is better to mount the meter on a tripod for this type of measurement. A tripod mount is included on the back of the meter. It can be fitted to a standard camera tripod, or we can provide you with a suitable one.

For Data Logging Meters

The meters on this page include the NoiseTools software - there is no extra charge for this. You can download the software to evaluate it before making a purchase.

NoiseTools Software

The NoiseTools software runs on a Windows PC. It is compatible with all recent versions of Windows, from Windows 7 onwards.

  • Downloads measurements from the Optimus Sound Level Meter
  • Produce noise reports, including custom noise at work reports
  • Print or export reports for sharing
  • Listen to Voice Tags
  • Hearing protection selection reports
  • Link measurements to projects, people and places
  • Free, lifetime updates
  • Licence free with no installation restrictions

More information about NoiseTools

Optimus Environmental Options

This model has the functions needed for most environmental and noise at work surveys, so there are very few options to choose from.

The following decisions do need to be made

  • Class 1 or Class 2?
  • Calibrator - Most regulations state that you should have a calibrator.
  • Noise Measurement Kit - These include meter, calibrator and a carrying case.

Sound Level Calibrator

The most important of the accessories is the Calibrator. Most regulations state that you should use one to check the function of the meter before making any measurements.

Class 1 or Class 2?

A Class 1 sound level meter is a little more accurate than a Class 2 model. It is also more expensive. Most environmental noise regulations demand Class 1 meter, whereas most noise at work regulations state that Class 1 is adequate. To be safe when measuring both environmental noise and occupational noise we recommend Class 1.

If you want a bit more information then please visit our FAQ page about Class / Type.

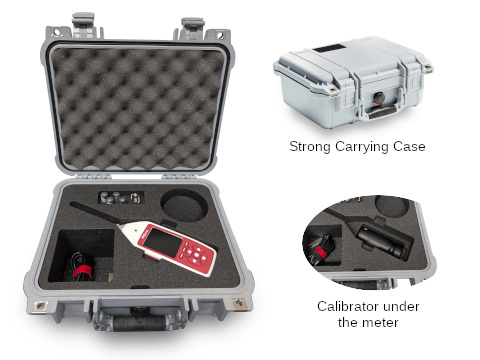

Noise Measurement Kit

The Noise Measurement Kits, order codes beginning CK..., include a sound level meter, calibrator of the correct class, software, carrying case and download cable. As a calibrator is generally needed the Noise Measurement Kit is the most common way to buy the Optimus.

Weatherproof Outdoor Kit

The Optimus Outdoor Noise Measurement Kit is ideal when you need to leave the meter unattended in poor weather conditions. The sound level meter itself is not weatherproof and will be damaged by rainfall.

The Outdoor Kit includes a weatherproof carrying case, outdoor microphone system and a battery pack to offer at least seven days of measurement. An optional extra battery pack will give up to fourteen days of noise measurement.

Outdoor Microphone

If you need to measure outdoors but can mount the sound level meter indoors, or in a weatherproof enclosure with power, then the MK172 Outdoor Mic option adds this ability to this model sound level meter. It comes with a 10m microphone extension cable and can be mounted on a tripod or mast.

High Noise Levels - To 170 dB

With the standard microphone fitted, the Optimus will measure up to 140 dB (143 dB Peak). While this is adequate for almost all applications, there are occasions when it is necessary to go higher. Measuring gunshot and even extreme car sound systems can need more than the usual 140 dB limit.

With the MV200EH High Level Noise Mic System the Optimus meter can measure up to 170 dB.

StandardsIEC 61672-1:2013 Class 1 or Class 2
IEC 61672-1:2002 Class 1 or Class 2 Group XIEC
IEC 60651:2001 Type 1 I or Type 2 I
IEC 60804:2000 Type 1 or Type 2
IEC 61252:1993 Personal Sound Exposure Meters
ANSI S1.4 -1983 (R2006), ANSI S1.43 - 1997 (R2007)
ANSI S1.25:1991
Octave Band Filters to IEC 61260 & ANSI S1.11-2004

Measurement Range20dB to 140dB RMS Single Range
Noise Floor<18dB(A) Class 1, <21dB(A) Class 2
Frequency WeightingsRMS & Peak : A, C, & Z Measured Simultaneously
Frequency Bands10 x Octave Bands (31.5Hz to 16kHz, A, B & C variants)
Time WeightingsFast, Slow & Impulse Measured Simultaneously

Memory8GB with 32GB factory fit option
Time History10ms, 62.5ms, 125ms, 250ms, 1/2 sec, 1 sec, 2 sec
VoiceTag AudioUp to 30 seconds of audio notes with each measurement

BluetoothBLE compatible with Android and iOS devices.
Mobile applications available from Google Play and the App Store

Audio RecordingOff, Manual, Threshold Triggered, Advanced Trigger
Studio Quality - 96kHz/32bit WAV format
High quality - 48kHz/24bit WAV format
Standard quality - 16kHz/16bit WAV format
Pre-Trigger function

Integrator Quick settingsEU, OSHA HC & OSHA NC, OSHA HC & ACGIH, MSHA HC & MSHA EC
Ln Statistical Values14 independent statistical Ln values calculated from 1/16th LAF
7 preset to L1.0, L5.0, L10.0, L50.0, L90.0, L95.0 & L99.0

Measurement controlManual, 1 min, 5 min, 10 min, 15 min,30 mins, 1 hour, Lden
Automatic Synchronisation & Repeat
Pause & Back Erase with user selectable duration

DimensionsSize: 283mm x 65mm x 30mm
Weight: 300gms/10oz

PowerBattery: 4 x AA Alkaline
Typically 12 hours with Alkaline AA
Typically 20 hours with Lithium AA Non-Rechargeable

ConnectionsUSB Type B to PC
AC & DC Output via ZL:174 (2 x Phono, 1m)
Multi-pin IO for external power via ZL:171 cable (2.1mm socket)
External Power: 5v-15v via MultiIO socket via ZL:171 cable (2.1mm socket)

CaseMaterial: High Impact ABS-PC with soft touch back & keypad
Tripod Mount1/4" Whitworth socket

EnvironmentalTemperature: Operating -10°C to +50°C, Storage -20°C to +60°C
Humidity: Up to 95% RH Non Condensing
ElectromagneticIEC 61672-1:2002 & IEC 61672-2:2003
IEC 61672-1:2013 & IEC 61672-2:2013
Except where modified by EN 61000-6-1:2007 & EN 61000-6-1:2007

Language optionsEnglish, French, German, Spanish.

Displayed FunctionsLXY, LXYMax, LXYMin, LXeq, LCPeak, LAPeak, LZPeak, LCeq-LAeq, LXE, LAIeq
Graph of Short LAeq, LCPeak
Integrators 2 & 3: TWA, Dose%, Est Dose%
Real-Time 1:1 Octave Bands (Graphical & Numeric)
Measurement Run Time
14 Statistical Ln values

Stored FunctionsLXYMax & Time History of LXYMax
LAeq, LCeq, LZeq, LCPeak, LZPeak, LAPeak, LAIeq
Time History of LAeq, LCeq, LZeq, LCPeak, LZPeak, LAPeak, LAIeq
Integrators 2 & 3: Lavg , TWA. %Dose
Time History of Lavg
1:1 Octave Bands:Overall Leq & Leq Time History for each band
Ln Values: 14 independent statistical values
Audio recording during measurement

where x=A ,C ,Z; y= F, S, I
