Acoustic Calibrator - Class 2

Name: Acoustic Calibrator - Class 2
Brand: Cirrus
SKU: CR514
Price: 467.00 USD
Availability: InStock

Class 2 Calibrator

Price List

CR514

USD $467.00

Class 2 Calibrator, 94dB 1kHz, for ½" microphones

In stock

The delivery price is calculated during checkout based on your location and the goods ordered. Our basic delivery prices are:

Delivery within India: $82.00

Delivery Service: Five working days*

* For products that are in stock and the order received by midday.

Some products go through a final configuration and calibration before being shipped. If the calibration labs are busy this can add up to two days on to the delivery schedule but guarantees a fresh calibration.

CR514

USD $467.00

Class 2 Calibrator, 94dB 1kHz, for ½" microphones

In stock

Features

IEC 60942:2003 Class 2
ANSI S1.40:2006
Sound pressure level 94 dB
Frequency 1 kHz
Fits ½" microphones
Adapter available for ¼" microphones
15 Year Warranty

Applications

Calibration check of Class 2 sound level meter
Field calibration checks
Calibration of noise dosimeters
Required by many noise regulations

Overview

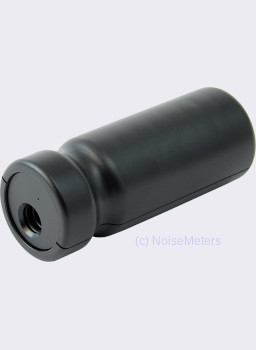

The CR514 Acoustic Calibrator meets ANSI S1.40:2006 and IEC 60942:2003 to Class 2. It is most suited to the Class 2 sound level meters that NoiseMeters offers.

This calibrator is included in most of the Class 2 Noise Measurement Kits, along with the sound level meter, carrying case and software where applicable. Please refer to the sound level meter web pages for more information.

Using It

As soon as the calibrator is switched on it emits a 1 kHz tone at 94 dB. The calibrator should be pushed carefully (firmly, but slowly) on to the microphone capsule.

The meter should now be adjusted accordingly. There will often be a free-field adjustment to make for the microphone in use. So, for example, you may actually be adjusting to 93.8 dB on the meter. For meters provided by NoiseMeters this is either dealt with automatically by the meter, or is covered in the meter's User Manual.


Standards	IEC 60942:2003 Class 2
	ANSI S1.40:2006
Type Approval	PTB-1.61-4028829
Sound Level	94.0 dB ± 0.4 dB
Frequency	1 kHz ± 1%
Distortion	< 2%
Reference conditions	23°C, 101.3 kPa, 65% RH
Microphone size	½" (to IEC 1094-4)


Calibration adapter	QD7 for use with 1/4" microphone capsules
Battery type	1 x 9v (PP3, 6LR61, 6F22)
Dimensions	121 x Ø47 mm
Weight	220 g with battery
Controls	Push button start, Automatic switch off with green
	LED indication. User override of automatic switch off
CE classification	EN 61000-6-3:2007+A1:2011
	EN 61000-6-1:2007
